ATEN 4-Ports USB KVM Switch - CS1734A :


ATEN 4-Ports USB KVM Switch

CS1734A KVM Switch has built-in USB on each of the front and rear panels and audio signal connectors. It allows users to control the computer and peripheral devices via a signal console at ease.

Features
One USB console controls 4 computers and two additional USB devices
2 port USB Hub built in
Dual interface supports computers with PS/2 or USB keyboards and mice
Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
With speaker and microphone support
Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
Auto PS/2 and USB interface detection
Buzzer On/Off via hotkey
Keyboard and mouse emulation for error free booting
Computer selection via front panel pushbuttons and hotkeys
Superior video quality - up to 2048 x 1536; DDC2B
Firmware upgradable
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers
Package Content
1x 4-Port USB KVMPâ„¢ Switch
4x USB KVM Cables
1x Firmware Upgrade Cable
1x User Manual
1x Quick Start Guide

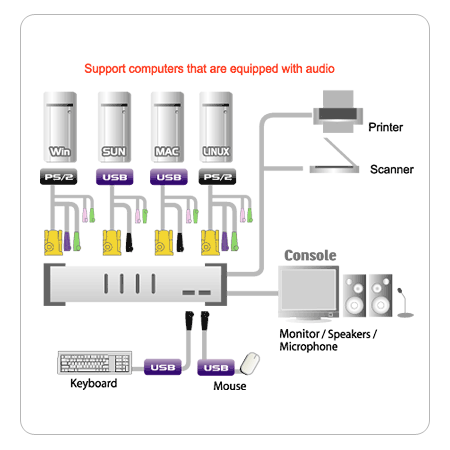

Diagram
Specification
Computer Connections 4
Port Selection Hotkeys, Pushbutton
USB Port/Audio Port Selection Hotkey
Connectors Console Ports Keyboard 1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Black)
Mouse 1 x USB Type A Female (White)
Speaker 1 x Mini Stereo Jack Female(Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
KVM Ports Keyboard/Video/Mouse 4 x SPHD-15 Female (Yellow)
Speaker 4 x Mini Stereo Jack Female (Green)
Microphone 4 x Mini Stereo Jack Female (Pink)
USB Hub 2 x USB Type A Female (Black)
F/W Upgrade 1 x RJ11 Female (Black)
Power 1 x DC Jack
Switches Port 4 x Pushbutton
F/W Upgrade 1 x Slide
LEDs On Line/ Selected 4 (Orange)
USB Link 4 (Green)
Emulation Keyboard/Mouse USB
Video 2048 x1536; DDC2B
Scan Interval 1~99 seconds
Power Consumption DC5V, 1.25W
Environment Operating Temp. 0~50 XC
Storage Temp. -20~60 XC
Humidity 0~80% RH, Non-densing
Physical Properties Housing Metal
Weight 0.70 kg
Dimensions ( L x W x H ) 21.00 x 8.50 x 5.50 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
